特別為傳送帶或傳送器設計,這個系列同樣適用于廣泛多樣的工業領域

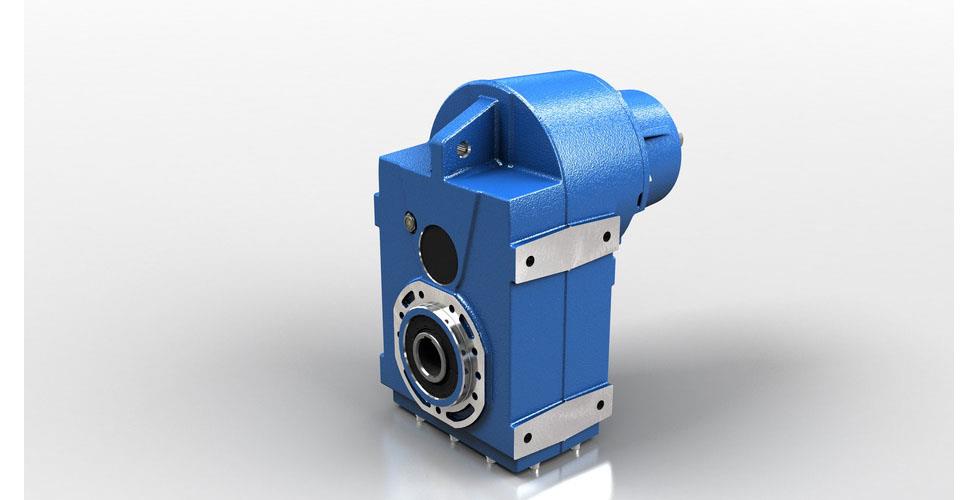

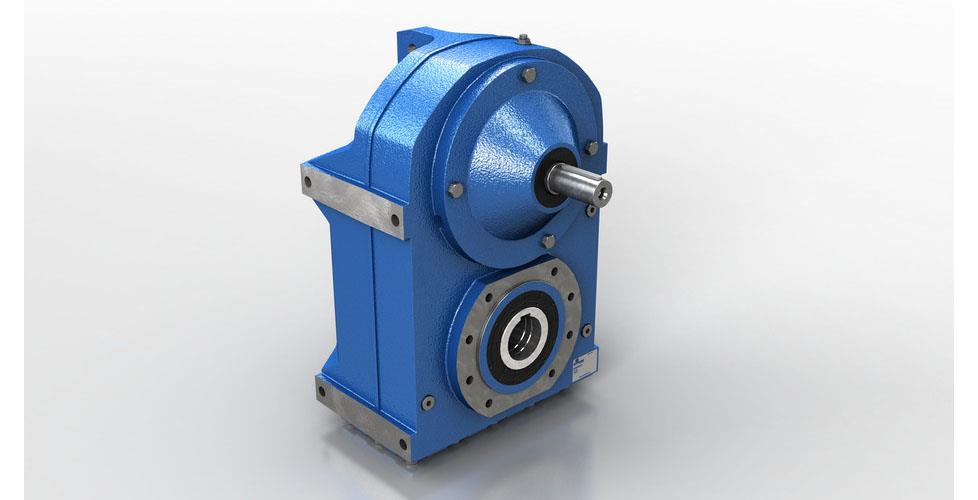

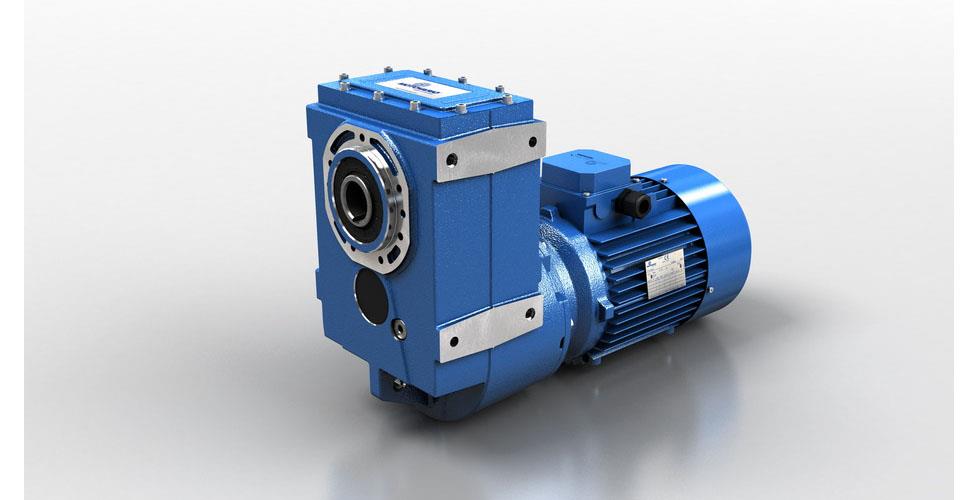

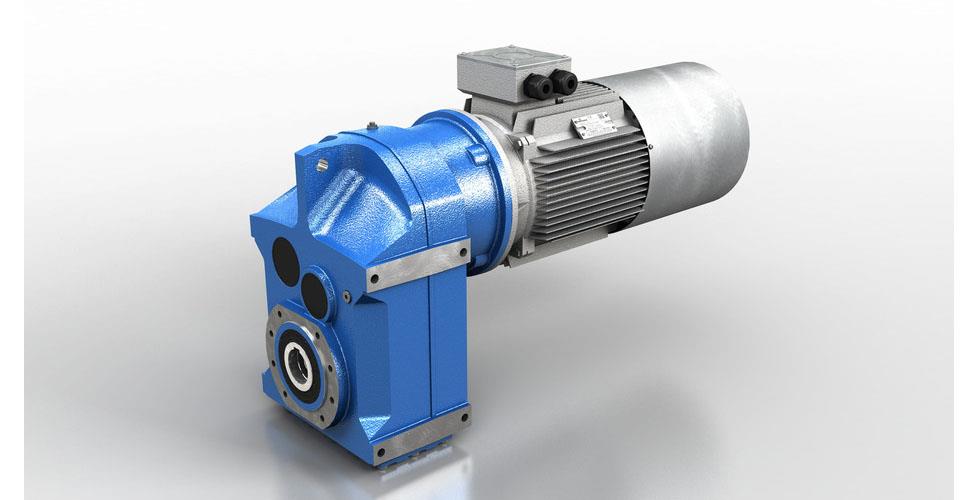

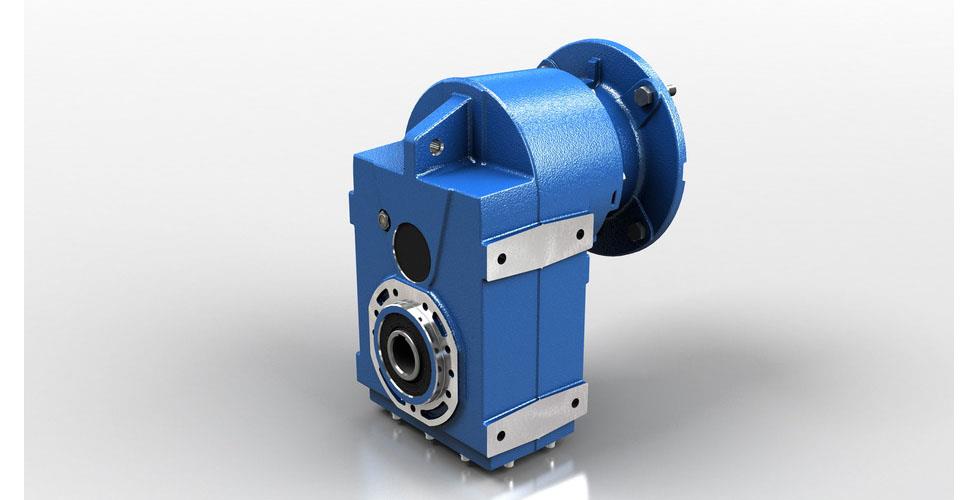

  S系列軸裝齒輪減速器提供鑄鐵型號，可選規格050至125，減速比范圍寬，確保在所有操作條件下具有效率。
  摩鐸利S系列推出了兩個新尺寸機型-140和150，可拓寬高功率螺旋傘齒輪減速機的安裝范圍。
  提供認證(高達大小125)：ATEX 2GD/3GD
  質量保證：自交付之日起兩年。
  產品特性
  范圍
  Downloads
  PRODUCT CHECK LIST
  發送詢盤
  型號:050-060-080-100-125-140-150
  Power from 0,12 kW up to 45 kW with three phase 4 pole motors
  Reduction ratios between 4,06 and 394,69
  Torque max 9.500 Nm
  Admissible radial loads max 30.000 N
  型號:050-060-080-100-125
  Universal casing
  Versions:S...C Foot-flange mounting/Hollow shaf-S...D Foot-flange mounting/Solid shaft-S...L Foot-flange mounting/Shrink disc shaft
  Gearing with 2 and 3 reduction stages
  Modularity
  Gears hardened and tempered with shaved or ground profile
  Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
  Excellent mechanical strength
  Load capacity calculated to ISO 6336,DIN 3990 and AGMA 2001
  Painted with RAL 5010 blue epoxy-polyester powder
  型號:140-150
  Universal casing
  Versions:S...C Foot-flange mounting/Hollow shaft,S...L Foot-flange mounting/Shrink disc shaft
  Gearing with 2 and 3 reduction stages
  Gears hardened and tempered with ground profile
  Cases in EN-GJL-200 grey cast iron
  Load capacity calculated to ISO 6336,DIN 3990 and AGMA 2001
  Gearboxes supplied without lubricant
  Painted with RAL 5010 blue epoxy-polyester powder
